HTF Orbital Floor and Deck Sander – Spare Part Images

Use your browser’s search function (Windows: Ctrl-F, Mac: Cmd-F) to find a specific part.

Click the part number (PSTK) link to view the part image. Images include the part number.

REF	PSTK	Description	Pack Qty
1	011600	Switch 220/240 Volt (Bias Off)	1
1	011610	Switch 110/120 Volt (Bias Off)	1
2	030425	Housing Switch Assembly	1
3	030630	Stop Rubber	1
4	030920	Screw	7

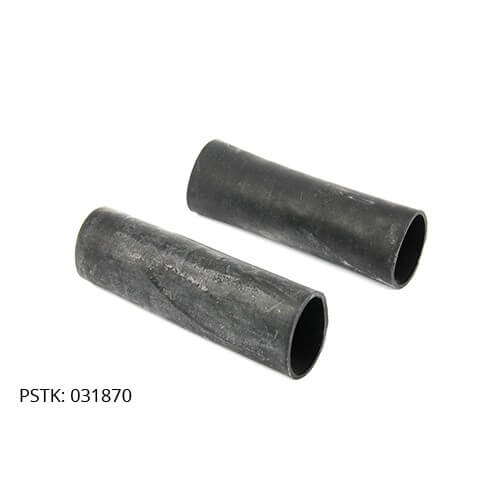

5	031870	Grip Hand	2
6	010270	Washer Lock	5
7	031950	Plug Blanking	1
9	101206	Nut Lock	1
10	101205	Strain Relief	1

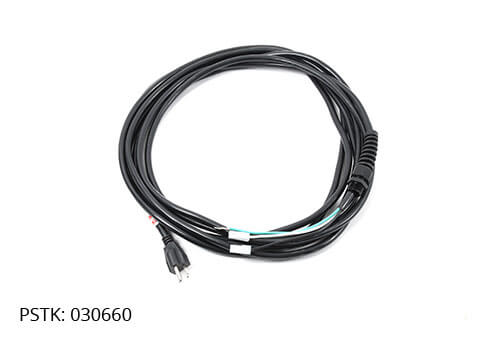

11	030660	Cable Main Assembly 110 Volt (NA)	1
11	030670	Cable Main Assembly 220/240 Volt (UK)	1
11	030680	Cable Main Assembly 110 Volt (UK)	1

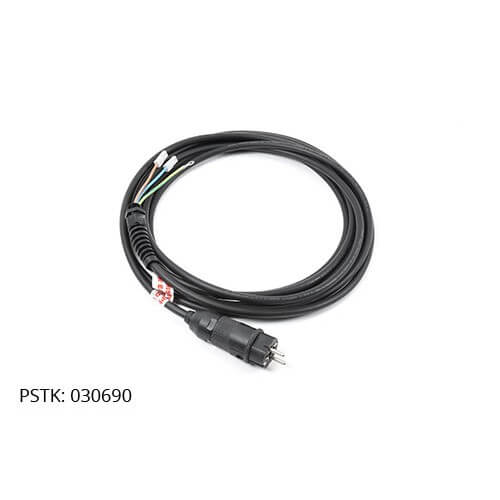

11	030690	Cable Main Assembly 220 Volt (EEC)	1
11	030700	Cable Main Assembly 220/240V (AUS)	1
12	030910	Tube Handle Assembly	1

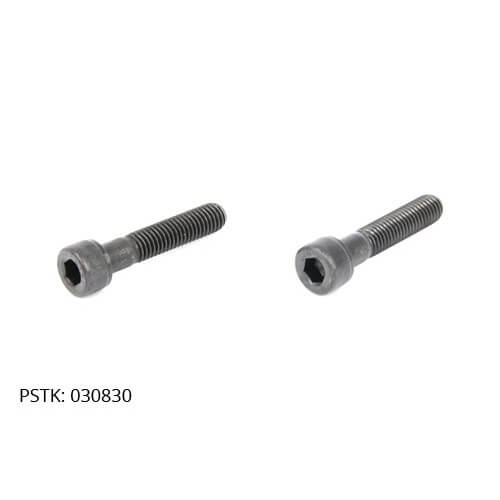

13	962345	Screw	10
15	164508	Hook Cable	1
16	980197	Washer	1
17	920148	Nut	1

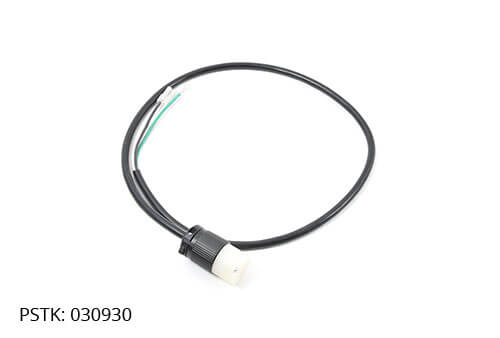

18	030930	Handle Cable (NA)	1
18	030940	Handle Cable	1

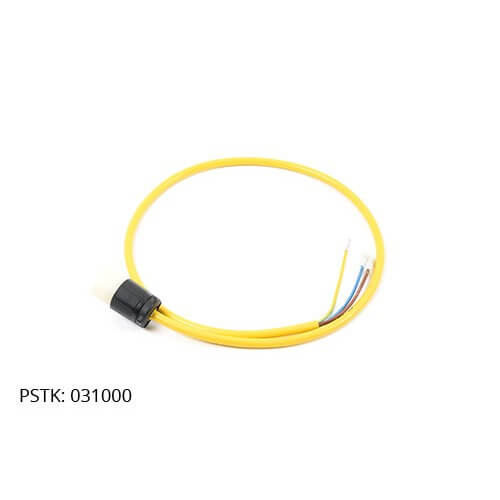

18	031000	Handle Cable 110 Volt (UK)	1
19	101220	Strain Relief Handle Cable	1
19	163804	Strain Relief Handle Cable (NA)	1
20	911046	Body Twist Lock	1
21	010210	Screw	4
22	911045	Base Twist Lock	1

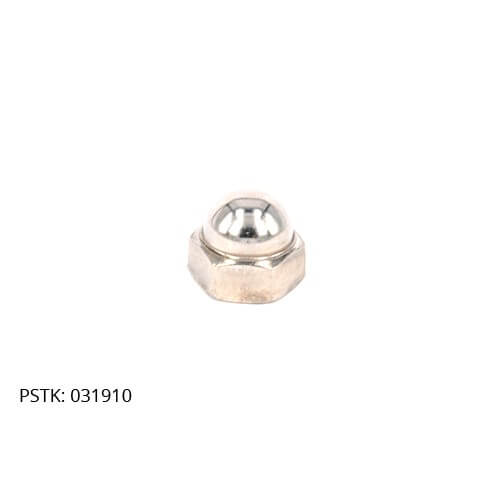

23	031910	Nut	1
24	030450	Clamp Handle	1

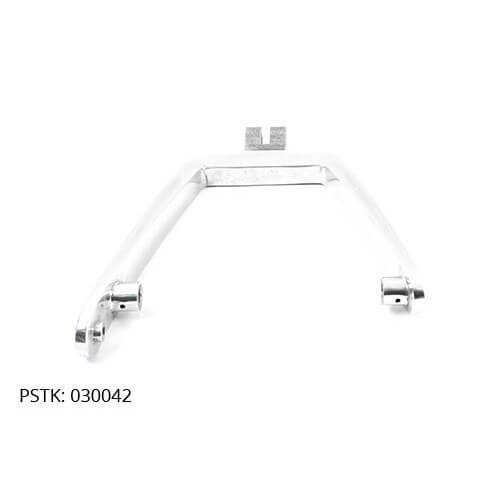

25	030042	Handle Frame	1
26	031790	Pin Pivot	2

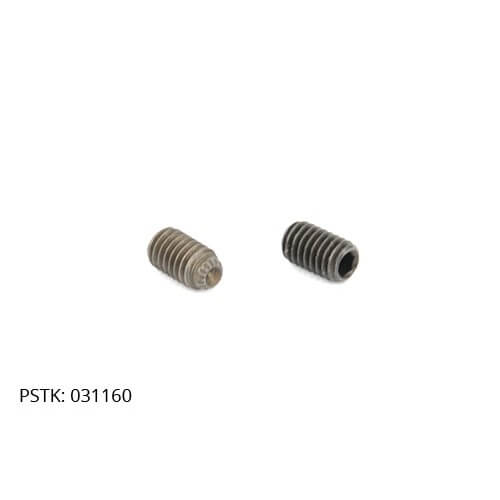

27	031160	Screw	2
28	031900	Bolt	1

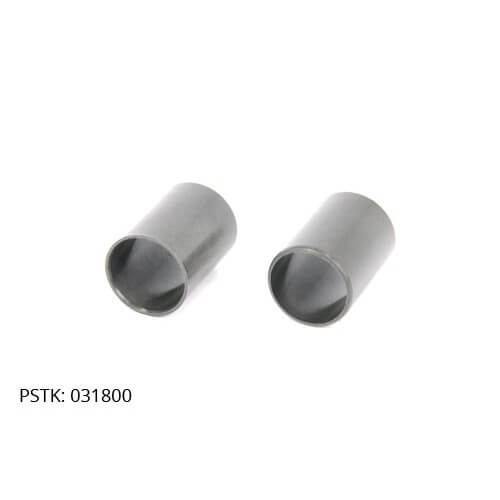

29	031800	Bush Bearing	2
30	030222	Latch	1
31	031810	Screw	1
32	031890	Washer	1

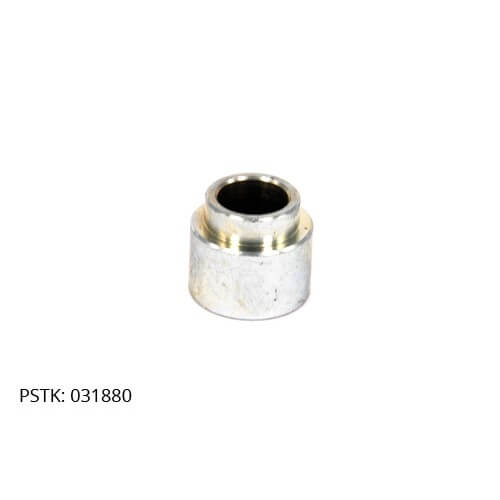

33	031880	Spacer Latch Pivot	1
34	031820	Screw	1

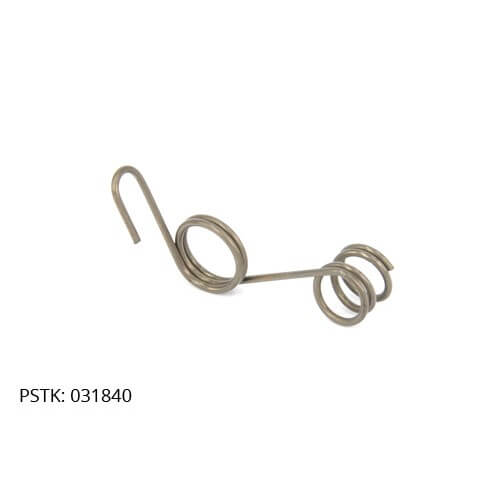

35	031840	Spring Latch Return	1
36	031830	Cover Screw	1
37	031850	Screw	2
39	030550	Washer	2
46	030030	Housing Motor	1
47	030022	Housing Gear	1
48	030010	Housing Lower	1
49	031090	Screw	6
50	030270	Cover	1

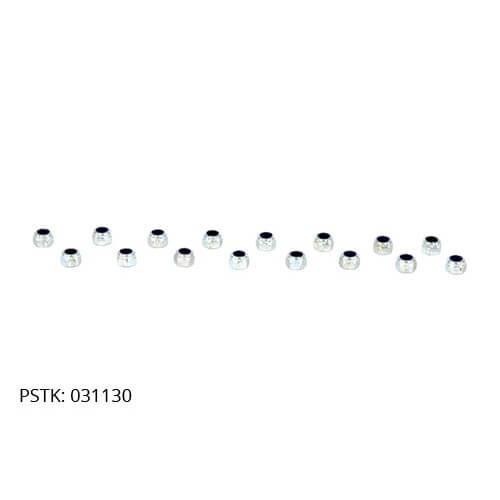

51	031130	Nut	16
52	031120	Screw	16
53	030360	Brush Set	1
54	030350	Bumper	1

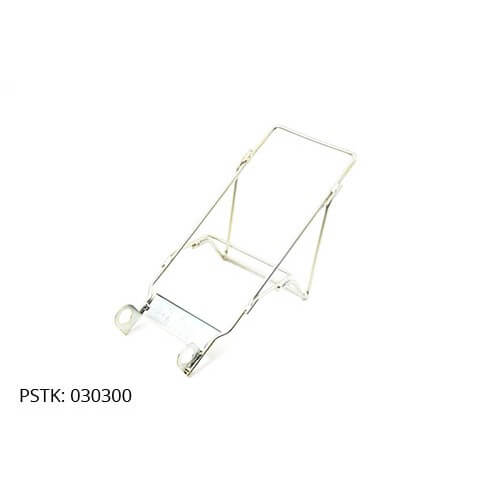

55	030300	Support Bag (check Serial No.)	1
59	030400	Bush	2

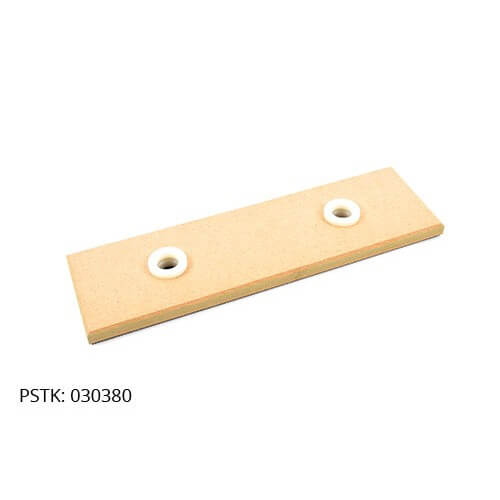

61	030380	Sanding Block Abrasive Pad	1
62	030790	Screw	4
63	030060	Retainer Wheel	1
64	030320	Housing Eccentric	1
65	030070	Wheel	2
67	031420	Exhaust Guard	1
68	031430	Ring Retainer	1
70	031310	Cap Weight	1
70	031320	Sanding Weight Moulding HTF	1

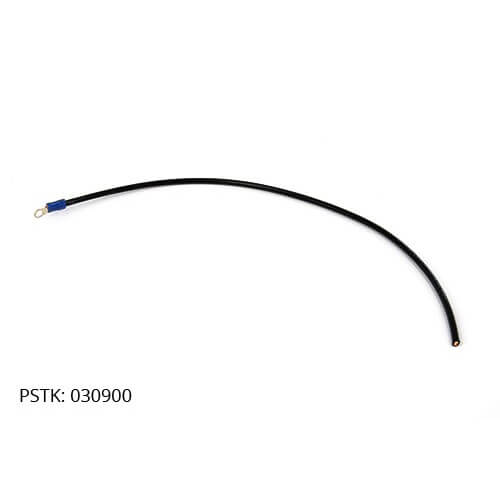

80	030990	Lead Motor	1
81	010750	Brush Shunt	2
82	010170	Brush Block Assembly	1
83	010190	Screw	4
84	010200	Washer	4
85	010210	Screw	4
86	010220	Screw and Washer Set	4
88	010180	Brush Motor	4
89	010230	Brush Spring	4
90	032000	Field 110/120 Volt HTF	1
90	032010	Field 220/240 Volt HTF	1
91	010290	Baffle	1
92	010300	Screw	3
93	010260	Washer Clamp	2
94	010280	Screw	2
95	010600	Spring Load	1
96	010320	Bearing	2
97	010330	Armature 110/120 Volt	1
97	010340	Armature 220/240 Volt	1
98	010350	Key	3
99	010360	Fan Motor	1
100	010370	Gasket	1
101	010380	Plate Exhaust	1
102	010390	Fan Intake	1
103	010400	Ring Retainer	1
104	010410	Spacer Bearing	1
105	010420	Seal	1
106	010430	Ring Retainer	1
107	031520	Spacer Pulley	1
108	030180	Pulley Drive	1
110	010010	Screw	4
111	030090	Cover Motor	1
112	011840	Insert Bearing	1
113	031280	Bush Insulator	1
114	031070	Lead Ground (Earth)	1
120	163808	Grommet	1

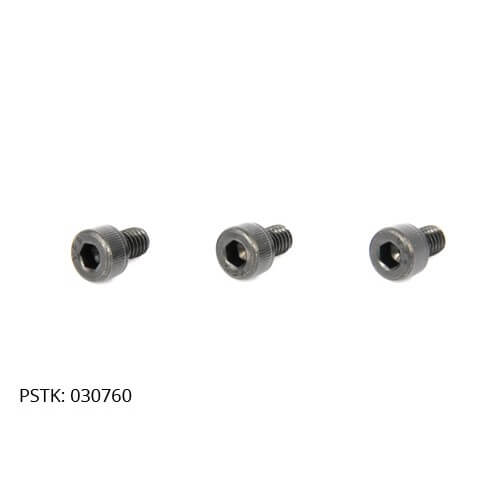

123	030760	Screw	3
125	030740	Screw	2
126	031450	Screw	4
127	030820	Screw	7
128	031300	Plug Bearing	1
129	030480	Clip	2

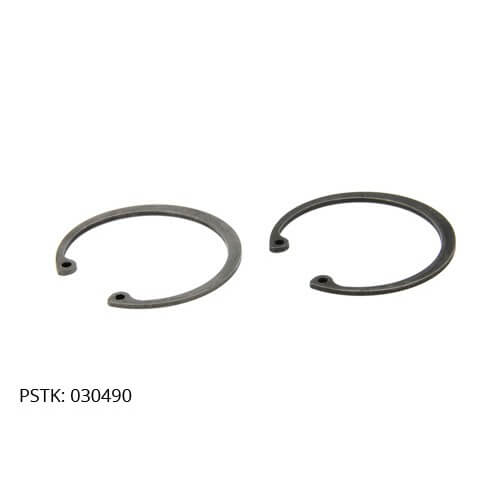

130	030490	Clip	2

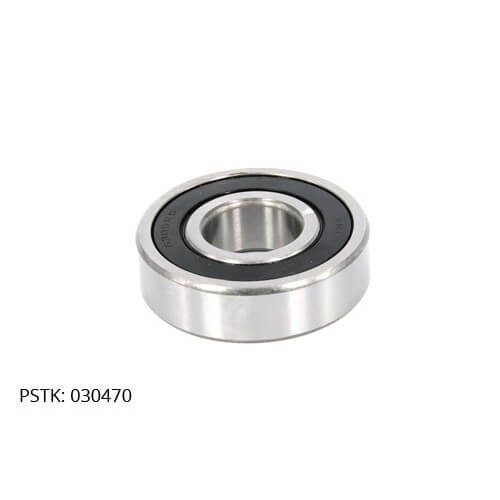

131	030470	Bearing	1
132	030130	Shaft Drive	1
133	030510	Key	1

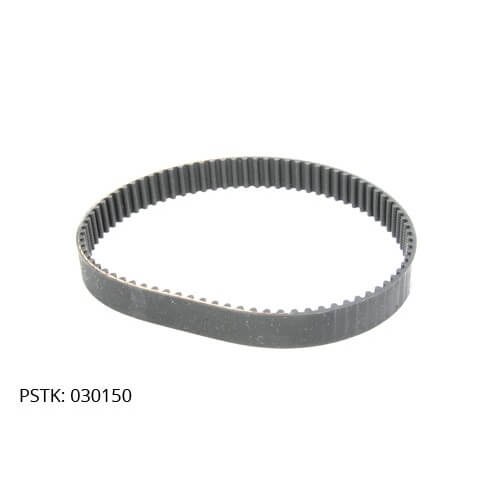

134	030150	Belt Drive	1
135	030170	Bush Pulley	1
136	030190	Pulley Driven	1

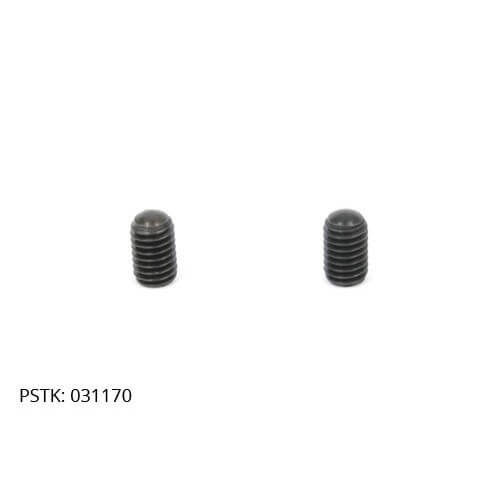

137	031170	Screw	2
138	030460	Bearing	3
139	030500	Clip	1
140	030120	Balance Weight	1

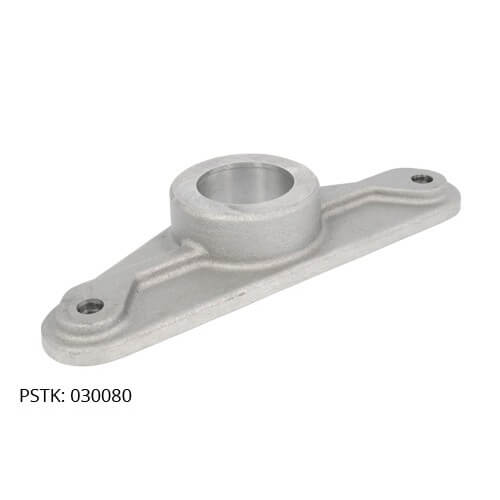

141	030080	Holder Sanding Pad	1
142	030410	Plate Cover	1

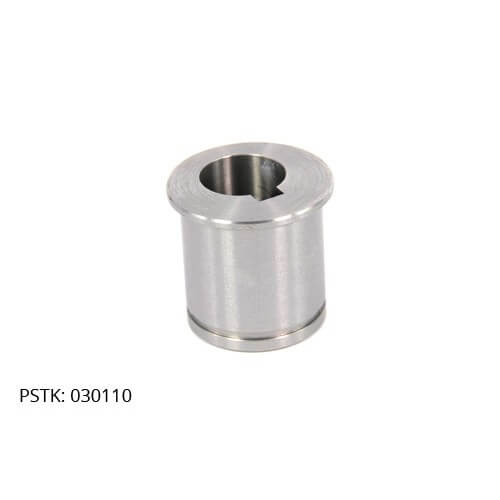

143	030110	Bush Eccentric	1

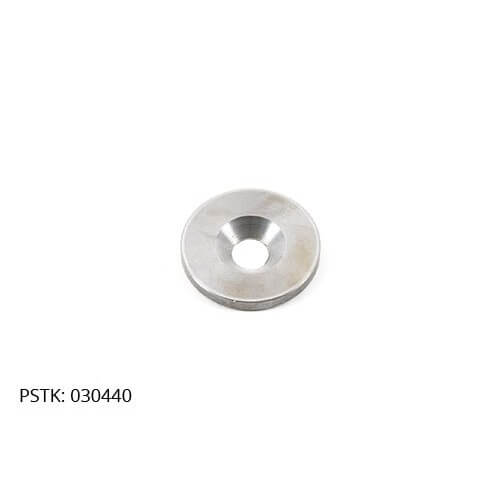

144	030440	Cap Retaining	1

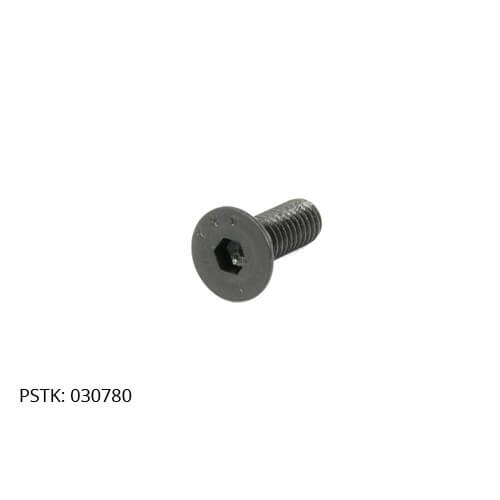

145	030780	Screw	1
146	030520	Spring Sanding Pad	2
147	980629	Washer	1
148	030830	Screw	2
149	010680	Pin Cotter	1
150	030850	Nut	2
151	030860	Washer	3
152	030100	Pin	2
153	030600	Spring Plunger	2
154	030840	Screw	2
156	031650	Knob Assembly	1

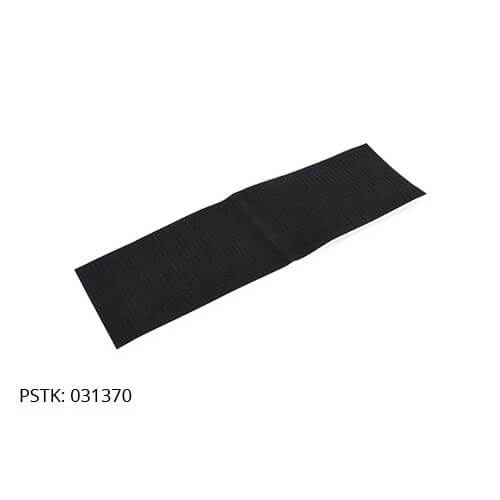

157	031370	Hook and Loop Pad	1

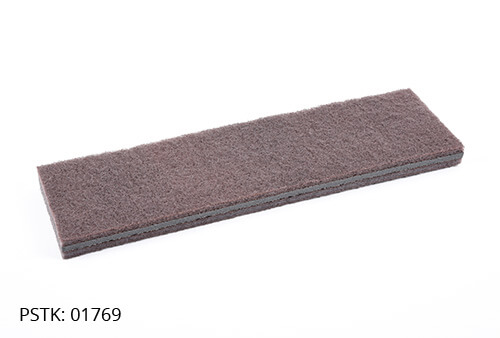

160	01769	Floor Sander Backing/Abrasive Pad HTF (box25)	25
170	07038	Disposable Paper Dust Bag HT7/HTF Pack 2 (box 25)	25
170	07040	Disposable Paper Dust Bag HT7/HTF (box 50)	50
180	031390	Owners Manual & Operating Instructions Download	1
250	011740	Service Tool – Pinion & Pulley Fitting/Removal	1
250	031490	Service Tool – Lever Block Holder HTF	1

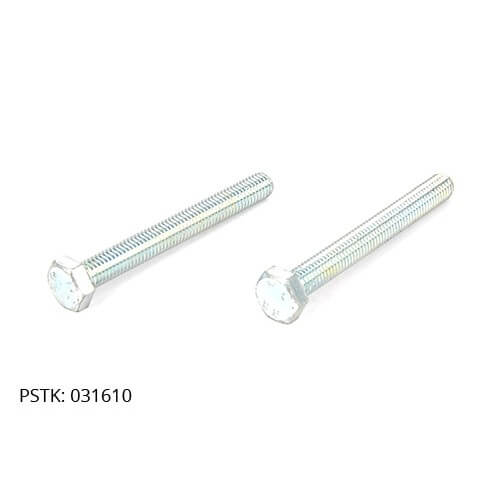

250	031610	Service Tool – Jacking Bolts HTF	1
