HTW Steam Wallpaper Stripper (North America only)- Spare Part Images
Use your browser’s search function (Windows: Ctrl-F, Mac: Cmd-F) to find a specific part.
Click the part number (PSTK) link to view the part image. Images include the part number.
| REF | PSTK | Description | Pack Qty |
|---|---|---|---|
| 1 | 007613 | Steam Plate Complete | 1 |
| 2 | 007609 | Handle Assembly | 1 |
| 3 | 007610 | Label Steam Plate | 1 |
| 4 | 007611 | Tube Steam Plate | 1 |
| 5 | 007612 | Bracket Steam Tube | 2 |
| 6 | 007642 | Screw | 12 |
| 7 | 007614 | Rivet | 4 |
| 8 | 007645 | Screw | 4 |
| 9 | 007636 | End Caps Steam Plate | 2 |
| 10 | 007721 | Strain Relief | 1 |
| 11 | 007950 | Rail Steam Plate Kit | 2 |
| 12 | 007708 | Cover Tank Assembly | 1 |
| 13 | 007884 | Cap Filler and Chain | 1 |
| 14 | 007685 | Label Steam Warning | 1 |
| 15 | 007655 | Swivel Set | 1 |
| 16 | 007623 | Spacer Castor | 4 |
| 17 | 007661 | Hose Assembly | 1 |
| 18 | 007654 | Tank Assembly | 1 |
| 19 | 007624 | Castor | 4 |
| 20 | 007683 | Castor Bracket | 2 |
| 21 | 007632 | Heater Element 110/120 Volt | 1 |
| 22 | 007637 | Seal Heater | 1 |
| 23 | 007873 | Cut Out Double Pole | 1 |
| 25 | 007640 | Screw | 2 |
| 26 | 007662 | Lead Cut Out Heater | 2 |
| 27 | 007702 | Lead Connector Block Cut Out | 2 |
| 28 | 007880 | Lead Connector Block Tank Earth | 1 |
| 29 | 007881 | Lead Tank/Heater Earth | 1 |
| 30 | 007633 | Heat Sink Compound | 1 |
| 31 | 007626 | Label Product Name | 2 |
| 32 | 007876 | Label Instructions | 2 |
| 33 | 007700 | Cover Access | 1 |
| 34 | 007701 | Screw | 4 |
| 35 | 007705 | Connector Block | 1 |
| 36 | 007714 | Leads Main 110 Volt (NA) | 1 |
| 37 | 007710 | Lead Heater Earth | 1 |
| 38 | 007507 | Label Set | 1 |
| 40 | 007686 | Nut Swivel | 1 |
| 41 | 007697 | Olive Swivel | 1 |
| 42 | 007689 | Label End Product Name | 1 |

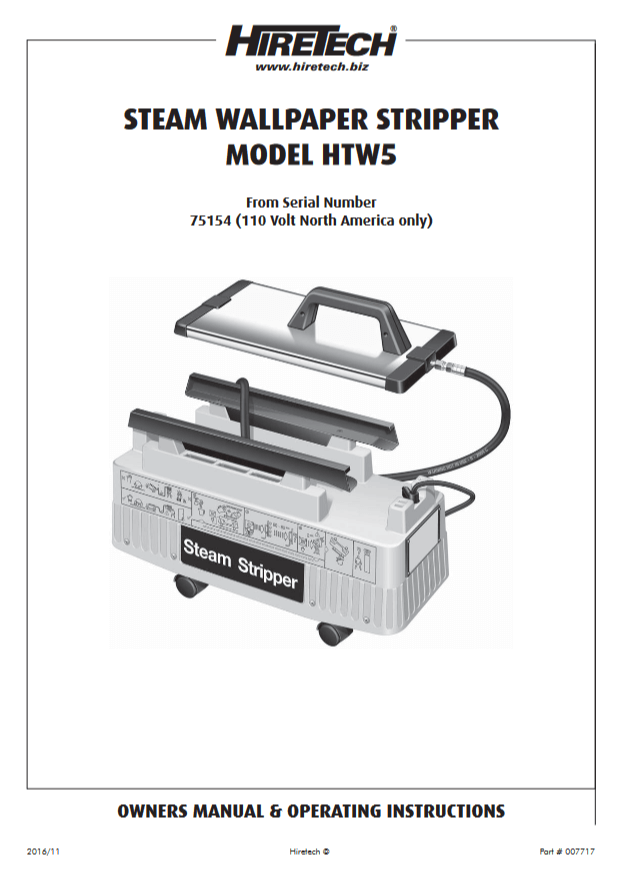

| 50 | 007716 | Owners Manual & Operating Instructions Download | 1 |
| 55 | 007965 | Steam Plate & Rail Kit Complete | 1 |
